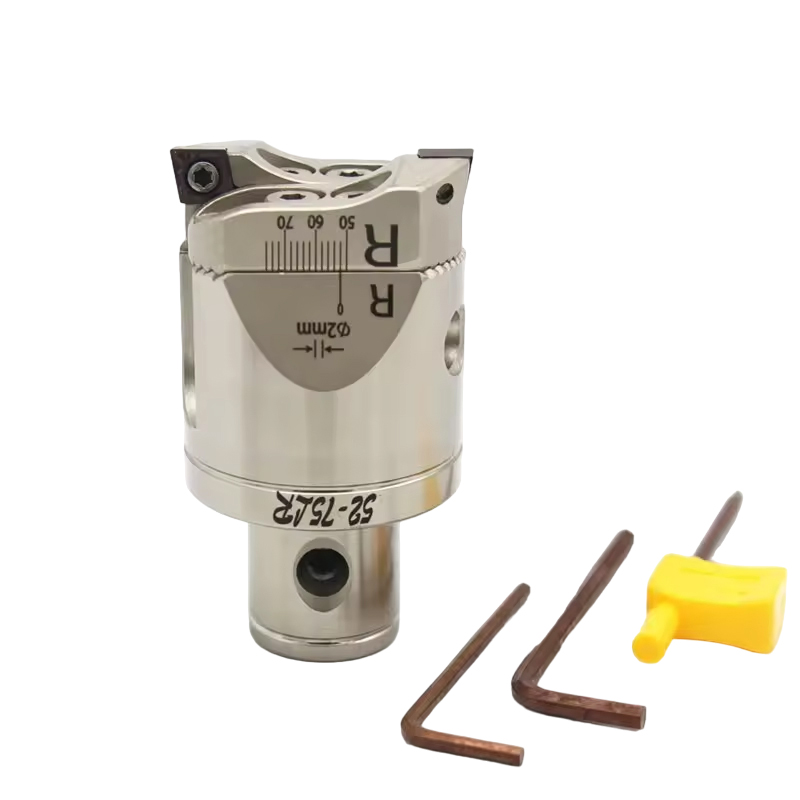

OLICNC RBA25 RBA32 RBA Cabezales de mandrinado en desbaste indexables de doble punta

1.The head is suitable for single bit boring,twin-bit boring and step boring.Boring range:19-110mm for LBA
2.Serrated design of insert holder can produce the highest rigidity and cutting force and is suitable for various kinds of boring
3.Boring head can be easily adjusted to different boring needs for machining on demand.Boring depth can be extended by extension bar.
4.Clear side division provides a convenient adjustment without using a tool pre-setter.
5.Most Suitable for boring of various machine centers or boring mill,Universal design accepts inserts of any brands which will reduce tool grinding time and greatly improve boring and step boring
6.Patented step boring design,suitable for both level boring effciency.
7.Boring tools of more than 100mm adopt the modular design and are characterized by simplicity and high rigidity

  • Detalles del producto

RBA Indexable Twin-bit Rough Boring Heads

Modelo Boring Adapter rango aburrido L <pD1 Insertar Peso
RBA19-25RL-C LBA1 19-25 30 18 CCMT060204 0.15
RBA25-35RL-C LBA2 25-35 35 24 CCMT060204 0.3
RBA32-45RL-C LBA3 32-45 40 31 CCMT060204 0.5
RBA40-55RL-C LBA4 40-55 50 39 CCMT09T304 1
RBA52-75RL-C LBA5 52-75 60 50 CCMT09T304 2.5
RBA68-110RL-C LBA6 68-110 70 66 CCMT120408 3.1
RBA110-160RL-C BST 110-160 95 100 CCMT120408 4.2
RBA160-204RL-C Series 160-204 130 CCMT120408 53
