F1 Boring Heads & sets/

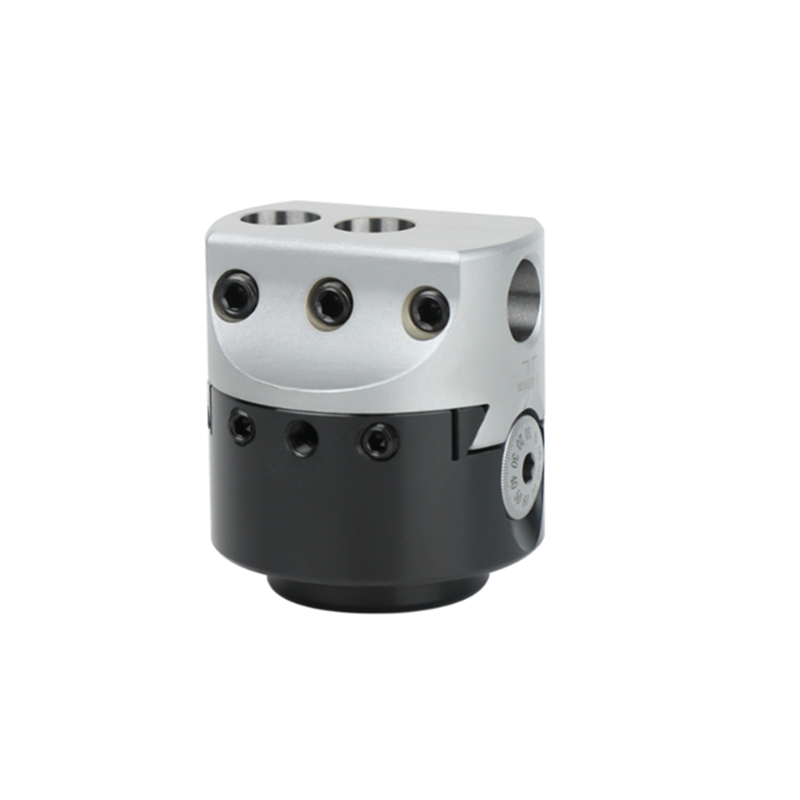

Adjustable Boring Head F1 Rough F1-12 Boring Head

Product Description   Adjustable Boring Head F1 rough 12mm boring head   Order No. Model D(mm) H(mm) Max. offset Boring bar dia. Min.graduation Dia of boring 12-109-001 F1-1/2 50 61.6 5/8" 1/2" 0.001" 3/8"-5" 12-109-002 F1-3/4 75 80.2 1" 3/4" 0.0005" 1/2"-9" 12-109-003 F1-1/2 100 93.2 1-5/8" 1" 5/8"-12.5" 12-109-004 F1-12 50 61.6 16mm 12mm 0.01mm 10-125mm 12-109-005 F1-18 75 80.2 25mm 18mm 12-225mm 12-109-006 F1-25 100 93.2 41mm 25mm 15-320mm     PRODUCTS FEATURE 1,The surface is quite smooth which offers a comfortable feeling and nice appearance. 2,The hardness and endurance of the surface are improved. 3,It can be used when boring holes, circles, end faces, step holes, inner hole end faces, cutting inner hole and ring groove on…

  • Product Details

Product Description



Adjustable Boring Head F1 rough 12mm boring head



Order No. Model D(mm) H(mm) Max. offset Boring bar dia. Min.graduation Dia of boring
12-109-001 F1-1/2 50 61.6 5/8″ 1/2″ 0.001″ 3/8″-5″
12-109-002 F1-3/4 75 80.2 1″ 3/4″ 0.0005″ 1/2″-9″
12-109-003 F1-1/2 100 93.2 1-5/8″ 1″ 5/8″-12.5″
12-109-004 F1-12 50 61.6 16mm 12mm 0.01mm 10-125mm
12-109-005 F1-18 75 80.2 25mm 18mm 12-225mm
12-109-006 F1-25 100 93.2 41mm 25mm 15-320mm





PRODUCTS FEATURE

1,The surface is quite smooth which offers a comfortable feeling and nice appearance.

2,The hardness and endurance of the surface are improved.

3,It can be used when boring holes, circles, end faces, step holes, inner hole end faces, cutting inner hole and ring groove on outer circles, etc.

4,It is a main accessory for boring CNC machine tool, jig boring machine, horizontal boring machine, common boring and milling machine.

Packaging & Delivery

Packaging :Carton box or as clients’ requirement

Leadtime :Normally ready goods within 10days , Orders about 30days

Company Introduction

Our main products
1. Tool Holders: ER Collets, Collets Chucks, Drill Chucks,etc;
2. Machine Accessories: Machine Vices, Dividing Head, Rotary Tables,etc;
3. Wood-working metals: Live Center, Clamping kits,Lathe Chucks;
4. Tool Bits: HSS Tool Bits, Taps, Tap Wrenches
