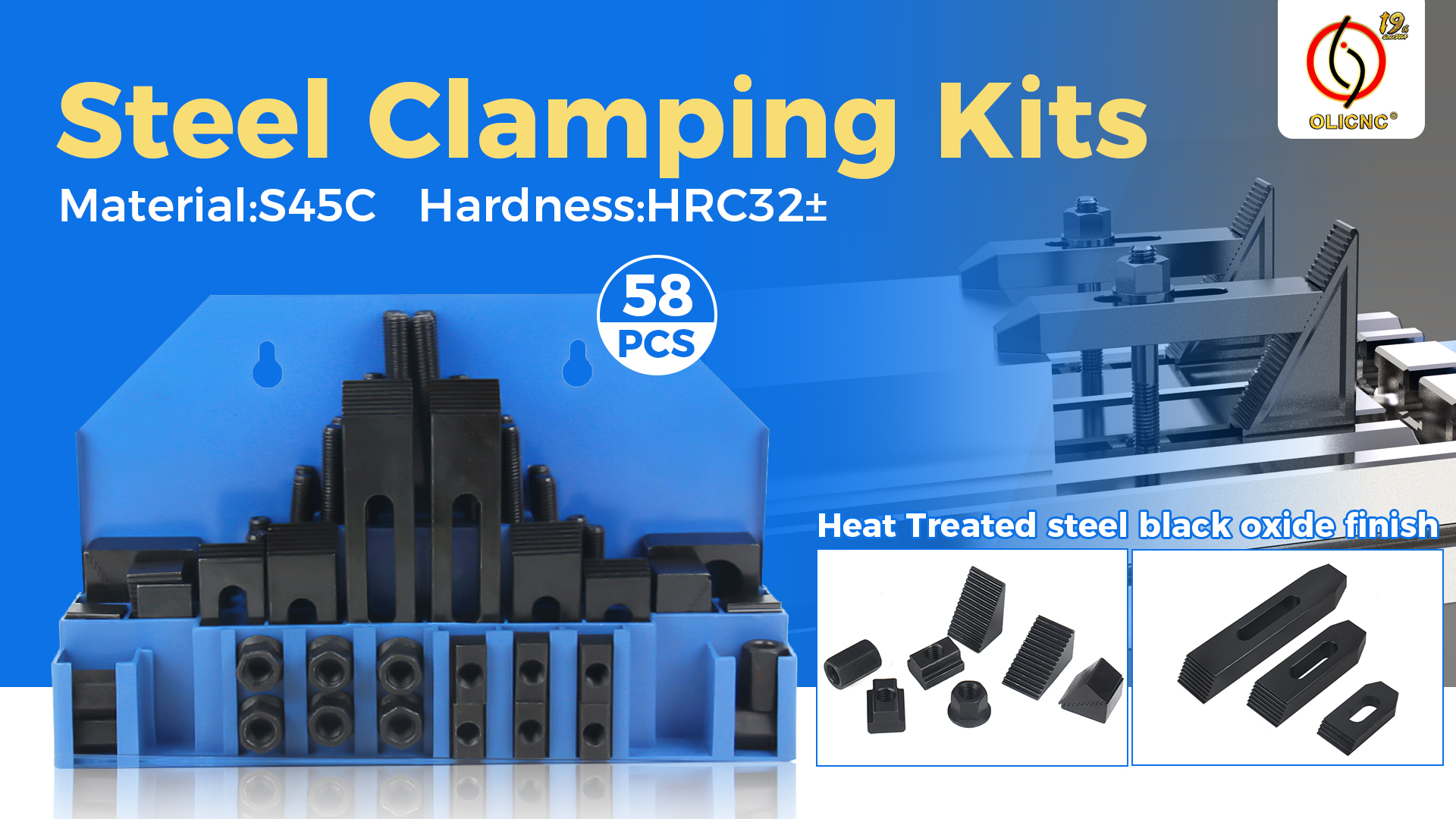

M8 M10 M12 M16 M18 58PCS Deluxe Steel Clamping Kit

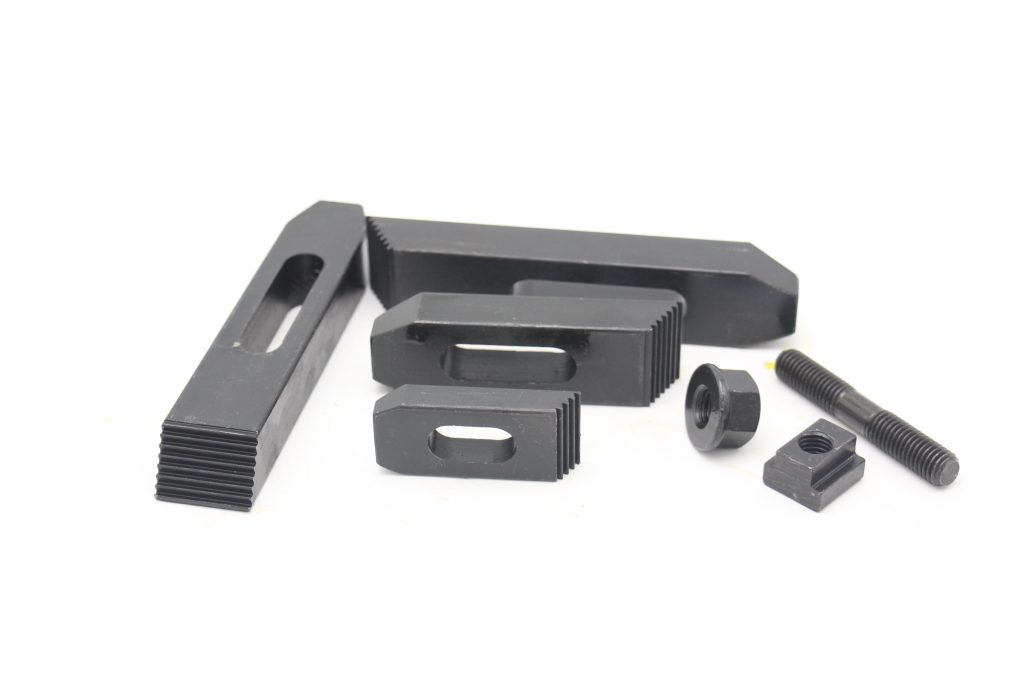

Heat treated steel black oxide finish.
Block size 25mm.Set in plastic rack or wooden plate consists of:
24pcs Studs (75/100/125/150/175/200mm),
6pcs T-Nuts, 4pcs Coupling Nuts
6pcs Flange Nuts
6pcs Step Clamps
6pcs Step Blocks
The parts of each specification all can be purchased individually.
| Metric | Taiwan Code | Table Slot | Stud Size | G.W./kg | GB |
| M 8 | CK-08 | 10 | 8-1.25P | 7 | – |
| M10 | CK-10 | 12 | 10-1.25P | 9 | 3/8-16 |
| M12 | CK-12 | 14 | 12-1.75P | 10 | 1/2-12 |
| M14 | CK-14 | 16 | 14-2.0P | 11 | – |
| M16 | CK-16 | 18 | 16-2.0P | 13 | 5/8-11 |
| M18 | CK-18 | 20 | 18-2.5P | 25 | – |
| M20 | CK-20 | 22 | 20-2.5P | 26 | 3/4-10 |
| M22 | CK-22 | 24 | 24-3.0P | 30 | 7/8-9 |
We also could supply another more harden type ,package with plastic box
