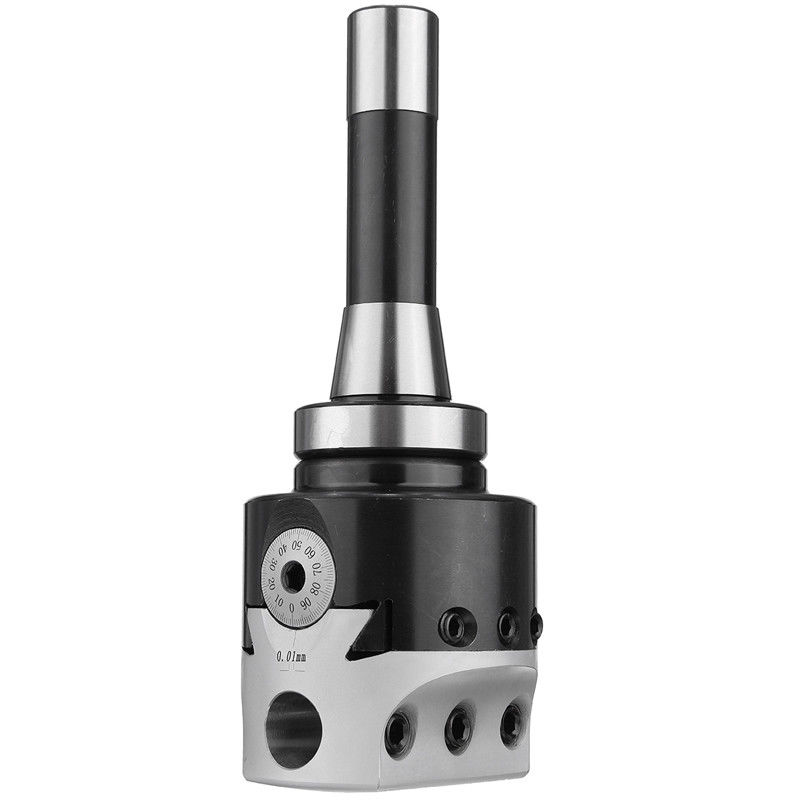

Precision F1-18mm 3″ F1-12mm 2″ Rough Boring Head for Milling Machines

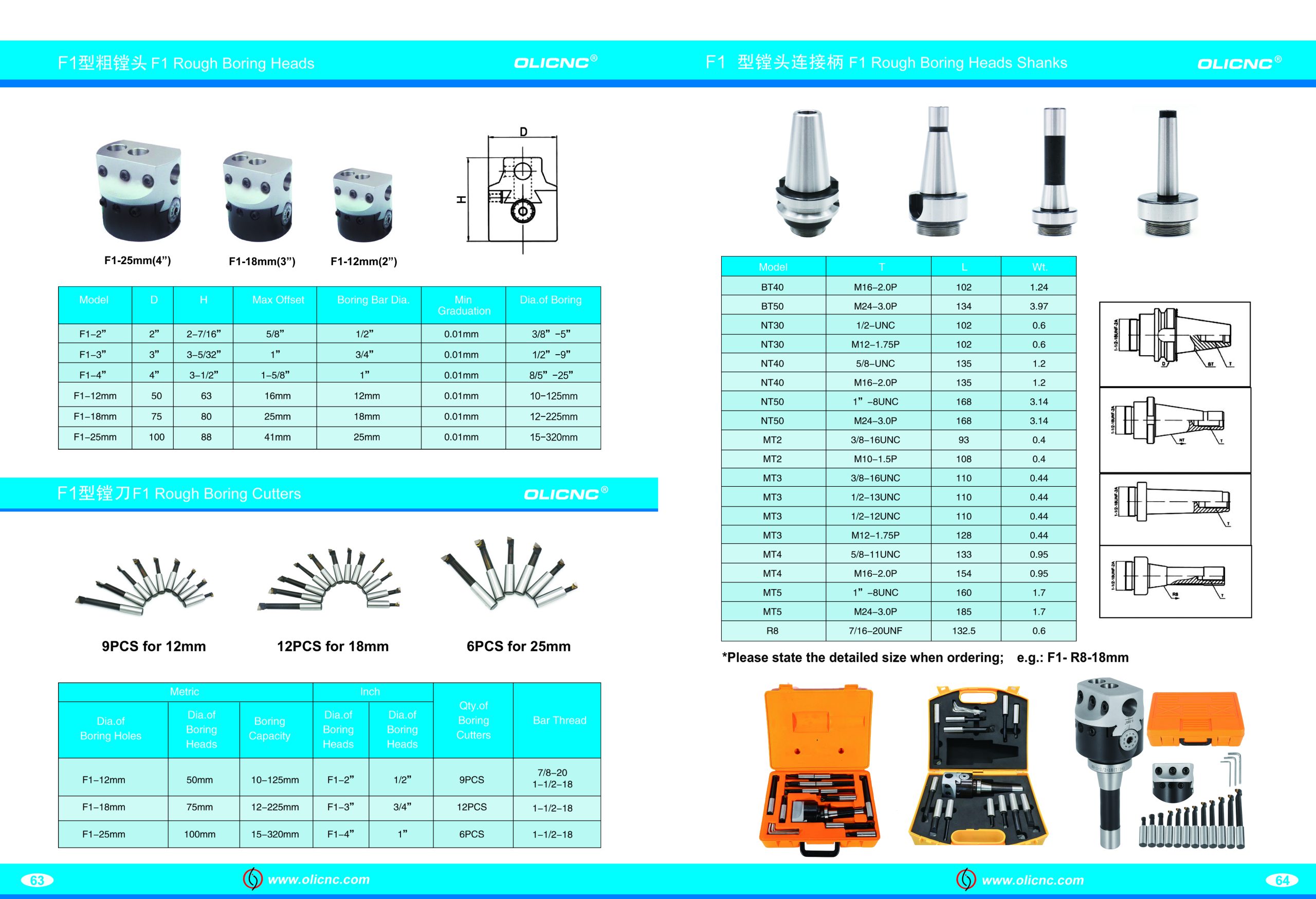

Full Size boring head shanks
shanks with BT30/40,MT2/3/4, R8, NT30/40
Boring Head F1-12mm ,F1-18mm
Boring cutters F1-12-9pcs , F1-18mm-12pcs , inch sizes also available
| Model | D | H | Max Offset | Boring bar Dia. | Min Graduation | Dia. of Boring |
| F1-1/2“ | 50 | 61.6 | 5/8″ | 1/2″ | 0.001″ | 3/8″-5″ |
| F1-3/4“ | 75 | 80.2 | 1″ | 3/4″ | 0.005″ | 1/2″-9″ |
| F1-1“ | 100 | 93.2 | 1-5/8″ | 1″ | 5/8″- 25″ | |
| F1-12 | 50 | 61.6 | 16mm | 12mm | 0.01mm | 10-125mm |
| F1-18 | 75 | 80.2 | 25mm | 18mm | 12-225mm | |
| F1-25 | 100 | 93.2 | 41mm | 25mm | 15-630mm |
