Olicnc,Pinças ER, Porta-ferramentas, Acessórios para máquinas

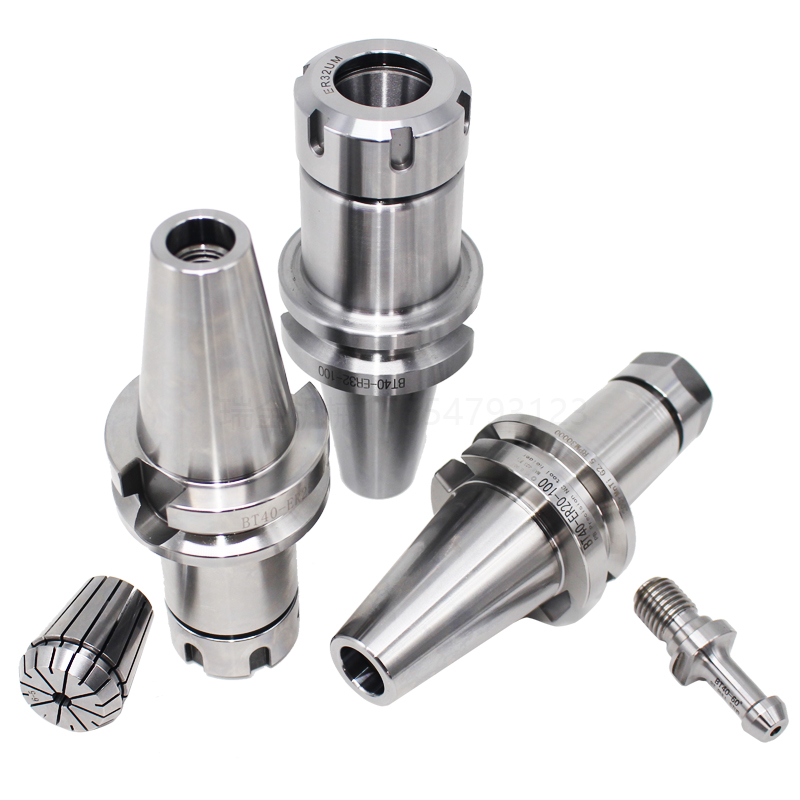

CNC BT30 BT40 Lathe chuck Turning Tool Holder ER32 collet chuck
1.Material:20CrMnTi / 40R.
2.Padrão: MAS 403
3.Full Sizes
4.Exportando pacote
5.Usado em fresamento,perfuração.
| Modelo | L1 | D | D1 |
| BT30×ER25-70 | 70 | 42 | 31.75 |
| BT30×ER32-135 | 135 | 42 | 31.75 |
| BT30×ER32-100 | 100 | 50 | 31.75 |
| BT30×ER40-80 | 80 | 63 | 31.75 |
| BT40×ER25-70 | 70 | 42 | 44.45 |
| BT40×ER25-100 | 100 | 42 | 44.45 |
| BT40×ER25-125 | 125 | 42 | 44.45 |
| BT40×ER25-150 | 150 | 42 | 44.45 |
| BT40×ER32-70 | 70 | 50 | 44.45 |
| BT40×ER32-100 | 100 | 50 | 44.45 |
| BT40×ER32-150 | 150 | 50 | 44.45 |
| BT40×ER40-80 | 80 | 63 | 44.45 |
| BT40×ER40-100 | 100 | 63 | 44.45 |
| BT40×ER40-120 | 120 | 63 | 44.45 |
| BT40×ER40-150 | 150 | 63 | 44.45 |
| BT50×ER25-105 | 105 | 42 | 69.85 |
| BT50×ER25-135 | 135 | 42 | 69.85 |
| BT50×ER25-165 | 165 | 42 | 69.85 |
| BT50×ER32-100 | 100 | 50 | 69.85 |
| BT50×ER32-120 | 120 | 50 | 69.85 |
| BT50×ER32-150 | 150 | 50 | 69.85 |
| BT50×ER32-200 | 200 | 50 | 69.85 |
| BT50×ER40-100 | 100 | 63 | 69.85 |
| BT50×ER40-120 | 120 | 63 | 69.85 |
| BT50×ER40-135 | 135 | 63 | 69.85 |
| BT50×ER40-150 | 150 | 63 | 69.85 |
