Mandris de perfuração sem chave com furo cônico 6mm/10mm/13mm/16mm/20mm
Keyless drill chucks widely used on bench drill, hand drill (threaded hole), rocker drill, milling machine, drilling machine, CNC machining center
①Open and closed state ②Extended State ③Clamping State
With self-tightening function, the bit can be gently clamped to increase the clamping force synchronously with the increase in torque during drilling and effectively prevent bit slipping
①The same diameter can match
|

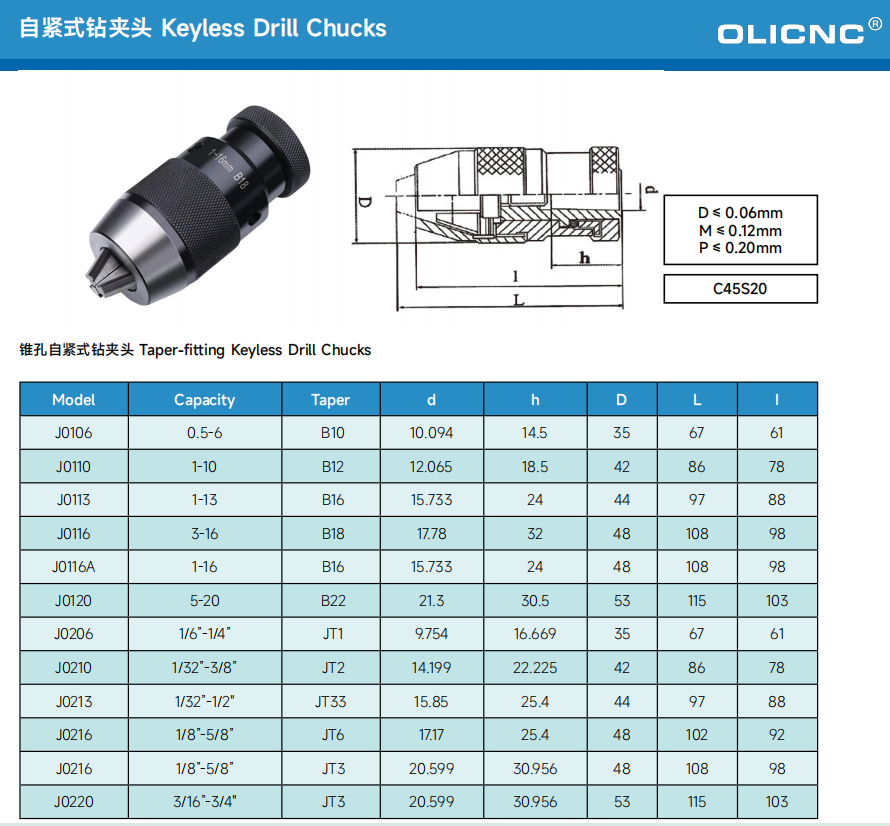

Size
|
Clamping Range
|
Tapered hole type
|
a
|
D
|
eu
|
L1
|
d
|
|
B10-0.5-6mm
|
0.5-6milímetros
|
B10
|
10.094
|
35
|
61
|
40
|
5
|
|
B12-0.5-8mm
|
0.5-8milímetros
|
B12
|
12.065
|
42
|
84
|
40
|
5
|
|
B12-1-10mm
|
1-10milímetros
|
B12
|
12.065
|
42
|
84
|
40
|
5
|
|
B16-1-13mm
|
1-13milímetros
|
B16
|
15.733
|
44
|
88
|
40
|
5
|
|
B18-1-16mm
|
1-16milímetros
|
B18
|
17.780
|
50
|
98
|
40
|
5
|
|
B22-5-20mm
|
5-20milímetros
|
B22
|
21.793
|
54
|
116
|
40
|
5
|
