Cabeças chatas F1 & conjuntos/

Cabeça chata ajustável OLICNC F1 Cabeça chata áspera F1-12

F1 Rough F1-12 Boring Head Model D H Max Offset Boring bar Dia. Min Graduation Dia. of Boring F1-1/2” 50 61.6 5/8″ 1/2″ 0.001″ 3/8″-5″ F1-3/4” 75 80.2 1″ 3/4″ 0.005″ 1/2″-9″ F1-1” 100 93.2 1-5/8″ 1″ 5/8″- 25″ F1-12 50 61.6 16mm 12mm 0.01mm 10-125mm F1-18 75 80.2 25mm 18mm 12-225mm F1-25 100 93.2 41mm 25mm 15-630mm PRODUCTS FEATURE 1,The surface is quite smooth which offers a comfortable feeling and nice appearance. 2,The hardness and endurance of the surface are improved. 3,It can be used when boring holes, circles, end faces, step holes, inner hole end faces, cutting inner hole and ring groove on outer circles, etc.. 4,It is a main accessory for boring

  • Detalhes do produto

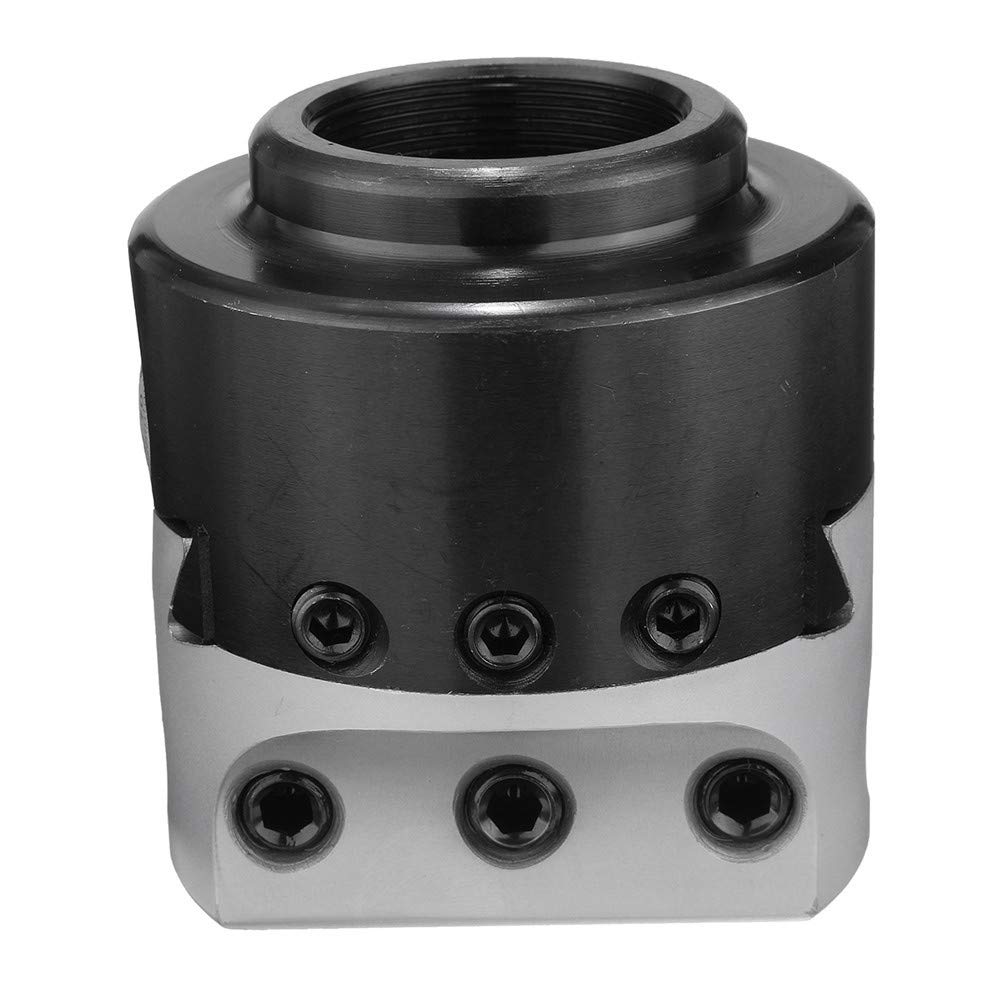

F1 Rough F1-12 Boring Head



Modelo D H Max Offset Boring bar Dia. Min Graduation Dia. of Boring
F1-1/2 50 61.6 5/8 1/2 0.001 3/8″-5″
F1-3/4 75 80.2 1 3/4 0.005 1/2″-9″
F1-1 100 93.2 1-5/8 1   5/8- 25
F1-12 50 61.6 16milímetros 12milímetros 0.01milímetros 10-125milímetros
F1-18 75 80.2 25milímetros 18milímetros   12-225milímetros
F1-25 100 93.2 41milímetros 25milímetros   15-630milímetros





PRODUCTS FEATURE

1,The surface is quite smooth which offers a comfortable feeling and nice appearance.

2,The hardness and endurance of the surface are improved.

3,It can be used when boring holes, circles, end faces, step holes, inner hole end faces, cutting inner hole and ring groove on outer circles, etc..

4,It is a main accessory for boring CNC machine tool, jig boring machine, horizontal boring machine, common boring and milling machine.
