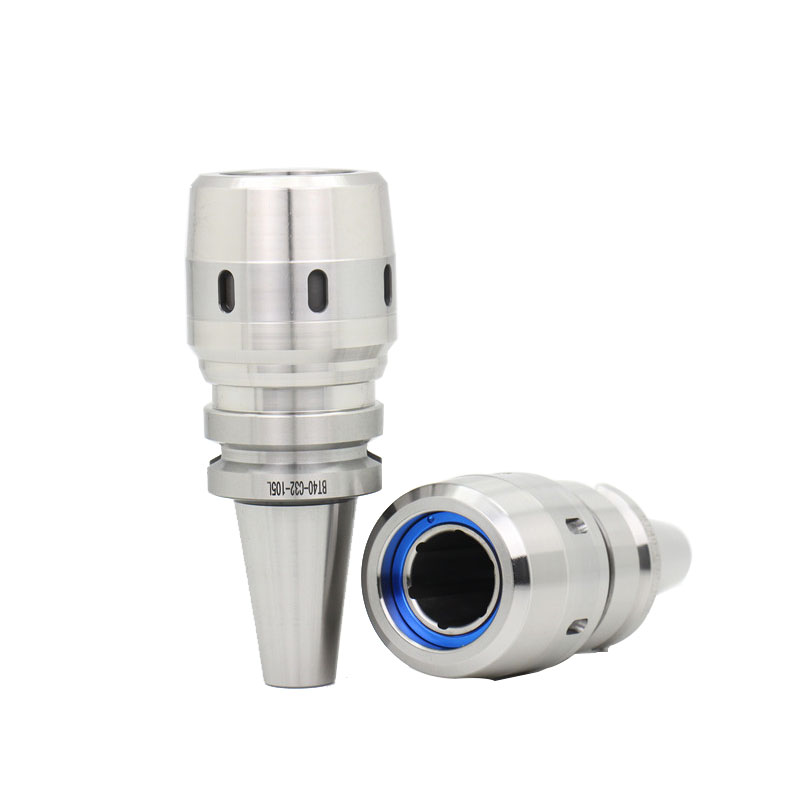

Mandris de pinça retos OLICNC BT40 C32 Power

OLICNC BT40 C32 Power straight collet chucks Size of shank & Collets Back Bar Thread Wt MT4 SC32-75L M16×2.0P 2.5KGS MT5 SC32-75L M24×3.0P 3.5 SC42-110L 5.0 R8 SC20-85L 7/16″-20 2.5 NT30 SC20-65L M12×1.75P 3.0 NT40 SC20-70L M16×2.0P 3.5 SC32-95L 4.0 NT50 SC32-100L M24×3.0P 4.5 SC42-110L 6.0 BT30 SC20-85L M12×1.75P 2.5 SC25-85L 3.0 BT40 SC20-80L/120L M16×2.0P 3.0/4.0 SC25-90L/135L 4.5/5.0 SC32-105L/150L 3.0/3.5 BT50 SC20-105L/150L M24×3.0P 3.0/4.5 SC32-110L/150L 5.2/7.0 SC42-115L/150L 7.0/8.5

  • Detalhes do produto

Mandris de pinça retos OLICNC BT40 C32 Power



Size of shank & Coleiras Back Bar Thread Ct
MT4 SC32-75L M16×2.0P 2.5KGS
MT5 SC32-75L M24×3.0P 3.5
SC42-110L 5.0
R8 SC20-85L 7/16″-20 2.5
NT30 SC20-65L M12×1,75P 3.0
NT40 SC20-70L M16×2.0P 3.5
SC32-95L 4.0
NT50 SC32-100L M24×3.0P 4.5
SC42-110L 6.0
BT30 SC20-85L M12×1,75P 2.5
SC25-85L 3.0
BT40 SC20-80L/120L M16×2.0P 3.0/4.0
SC25-90L/135L 4.5/5.0
SC32-105L/150L 3.0/3.5
BT50 SC20-105L/150L M24×3.0P 3.0/4.5
SC32-110L/150L 5.2/7.0
SC42-115L/150L 7.0/8.5
