Manga de perfuração/

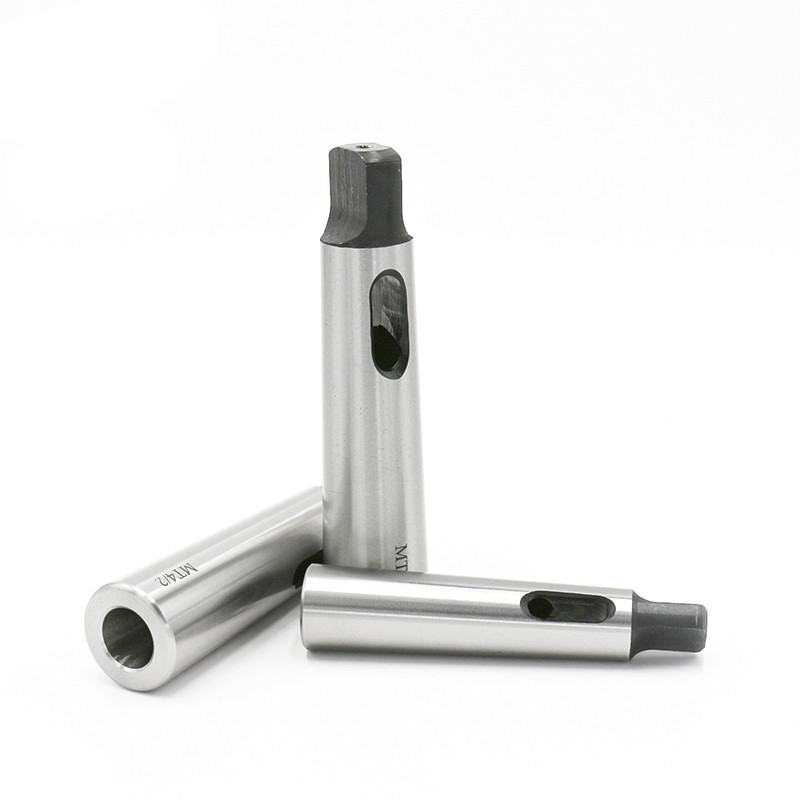

OLICNC Factory Direct Precision Morse Taper Sleeves Mt4 Mt5 Reducing Drill Sleeve Adapter Tool Holder for Drilling Milling

DIN2185 MT2 MT3 MT4 MT5 Morse Taper adapter shank Drill Sleeve Model MT.No.S MT.No.T D d L Wt(kg) MT2×1 2 1 18.6 12.065 90 0.10 MT3×1 3 1 24.1 12.065 99 0.24 MT3×2 3 2 24.7 17.78 108 0.12 MT4×1 4 1 31.6 12.065 124 0.60 MT4×2 4 2 31.6 17.780 124 0.50 MT4×3 4 3 32.4 23.825 132 0.38 MT5×1 5 1 44.7 12.065 156 1.59 MT5×2 5 2 44.7 17.780 156 1.49 MT5×3 5 3 44.7 23.825 156 1.36 MT5×4 5 4 45.5 31.267 164 0.95 MT6×1 6 1 63.8 12.065 218 3.84 MT6×2 6 2 63.8 17.780 218 3.73 MT6×3 6 3 63.8 23.825 218 3.85 MT6×4 6 4 63.8 31.267 218 3.12 MT6×5 6 5 63.8…

  • Detalhes do produto

DIN2185 MT2 MT3 MT4 MT5 Morse Taper adapter shank Drill Sleeve

Modelo MT.No.S MT.No.T D d eu Wt(kg)
MT2×1 2 1 18.6 12.065 90 0.10
MT3×1 3 1 24.1 12.065 99 0.24
MT3×2 3 2 24.7 17.78 108 0.12
MT4×1 4 1 31.6 12.065 124 0.60
MT4×2 4 2 31.6 17.780 124 0.50
MT4×3 4 3 32.4 23.825 132 0.38
MT5×1 5 1 44.7 12.065 156 1.59
MT5×2 5 2 44.7 17.780 156 1.49
MT5×3 5 3 44.7 23.825 156 1.36
MT5×4 5 4 45.5 31.267 164 0.95
MT6×1 6 1 63.8 12.065 218 3.84
MT6×2 6 2 63.8 17.780 218 3.73
MT6×3 6 3 63.8 23.825 218 3.85
MT6×4 6 4 63.8 31.267 218 3.12
MT6×5 6 5 63.8 44.399 218 1.95
