OLICNC CBA stainless steel precision boring head

Stainless steel CBA Micro Finish Boring Head

Material: Stainless steel
Accuracy: 0.01mm
Boring range: 16-210mm

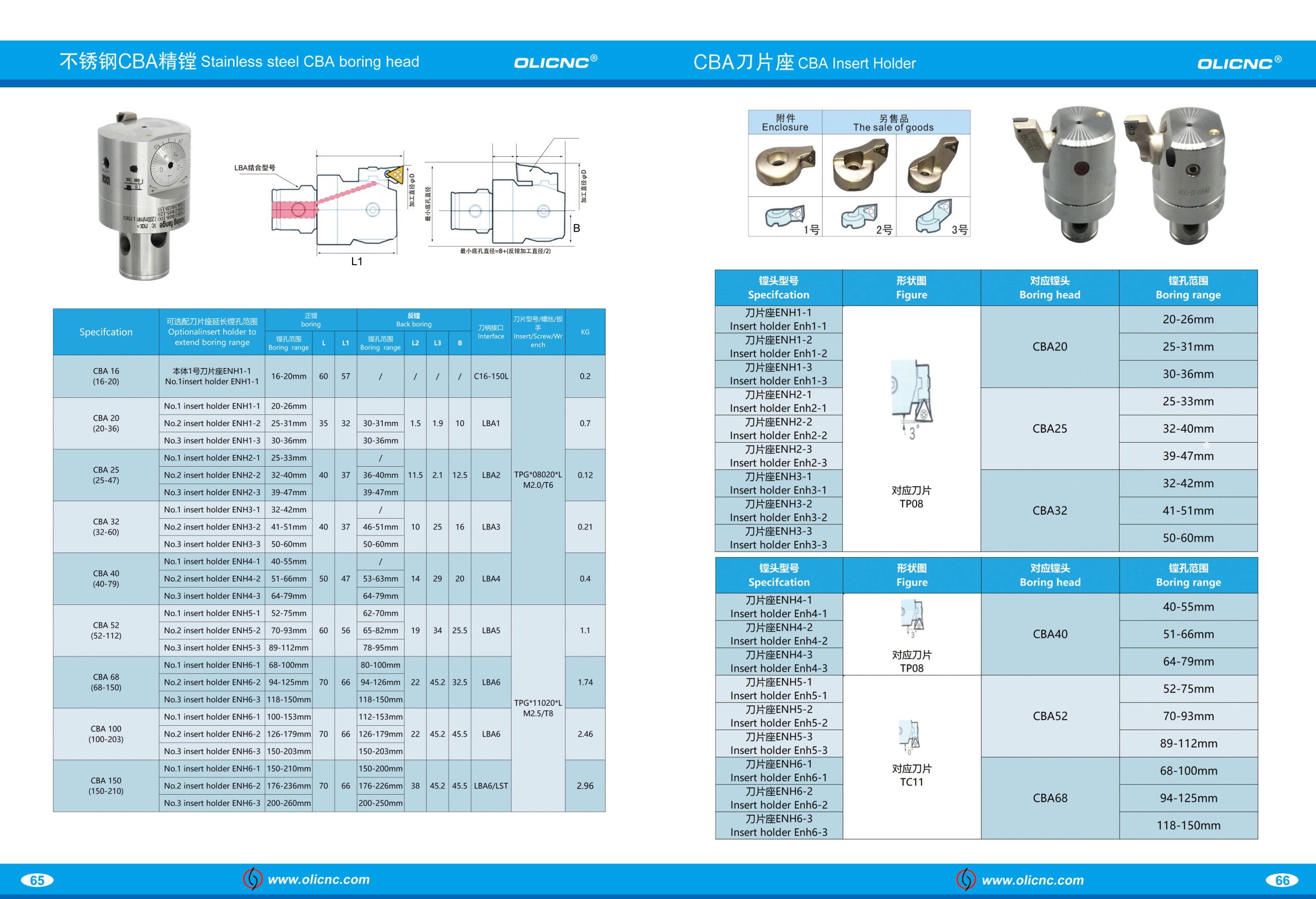

Available size: CBA16/20/25/32/40/52/68/100/150

Built-in water hole design to cool the tip of the tool directly
The processing temperature remains basically unchanged for a long time
Guarantee the service life of the blade
Boring head simply switch to a different seat, we can achieve a different range of hole machining.
Time-saving, labor-saving and low cost

How to Adjustment ?
1. Loosen the locking screw counterclockwise;
2. Turn the dial clockwise to adjust it to a diameter slightly smaller than the diameter to be processed;
3. Turn the dial counterclockwise to adjust to the desired machining diameter. 1 small grid = 0.101mm,
(from the big to the small adjustment, first adjust to the processing size is slightly smaller, and then call back to the required size.
4. Lock the fastening screw clockwise.
